Description
Performance, speed, efficiency: Winterhalter PT-M for peak times – short cycles, low consumption, robust professional quality.
Scope of delivery
- 1× Winterhalter Pass-through dishwasher PT-M (used)
Condition
- Used equipment
- Year of construction 2015
- Shows signs of wear
- Checked by our technician
- A deep cleaning was carried out.
You are welcome to view the device in our showroom in Karlsruhe.
Technical data
- Basket dimensions: 500 × 500 mm
- Clear entry height: approx. 440 mm
- External dimensions (W × D × H): approx. 635 × 750 × 1,535 mm (hood closed)

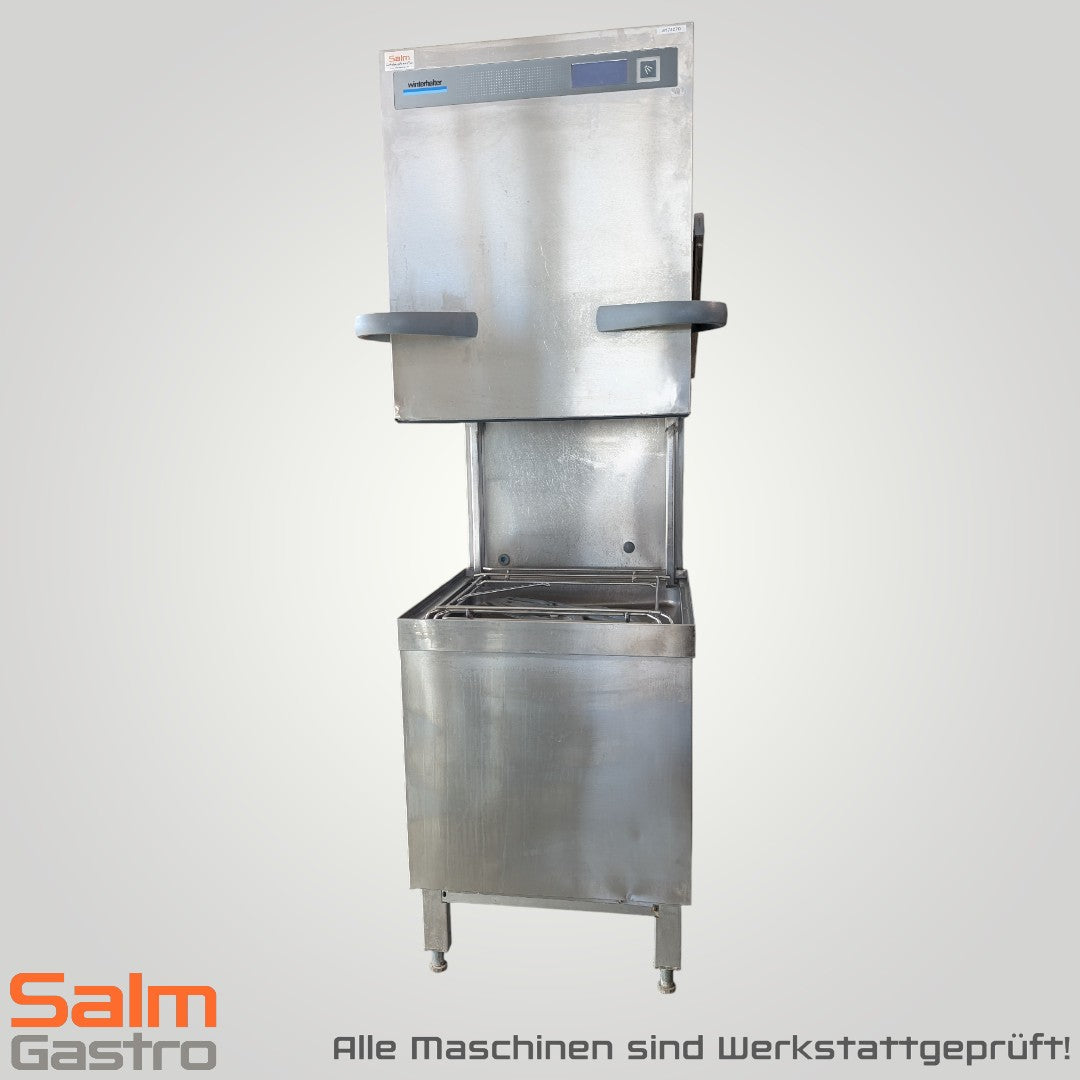

- Height with hood open: approx. 2,010 mm
- Programs: approx. 50/80/110 s
- Rinse water volume: from approx. 2.2 liters per cycle
- Tank capacity (typ.): approx. 35 l; flushing pump approx. 0.95 kW
- Electrical connection: 400V 50 Hz
- Total connected load (depending on variant): approx. 9.7–11.5 kW
- Water connection: 3/4", recommended flow pressure 1.0–6.0 bar
- Protection rating: IPX5
- Weight: approx. 137 kg net
Special features
- Low consumption: Only about 2.2 liters of rinse water per cycle for economical operation.
- Short programs: 50/80/110-second cycles for high frequency during peak times
- S-shaped wash areas (top/bottom) for even surface coverage and top washing results
- VarioPower pressure adjustment* It protects glasses and cleans stubborn dirt.
- Multi-filter system* with turbidity sensor for a consistently clean rinse bath
- Ergonomics: Hood start – Program begins when the hood is closed
- Service-friendly: Deep-drawn tank, clip-in spray arms* for tool-free cleaning
- Options depending on the version: Rinse pump, drain pump, integrated dosing unit, heat recovery*
All information is provided without guarantee.
Manufacturer: Winterhalter
