Description
Scope of delivery

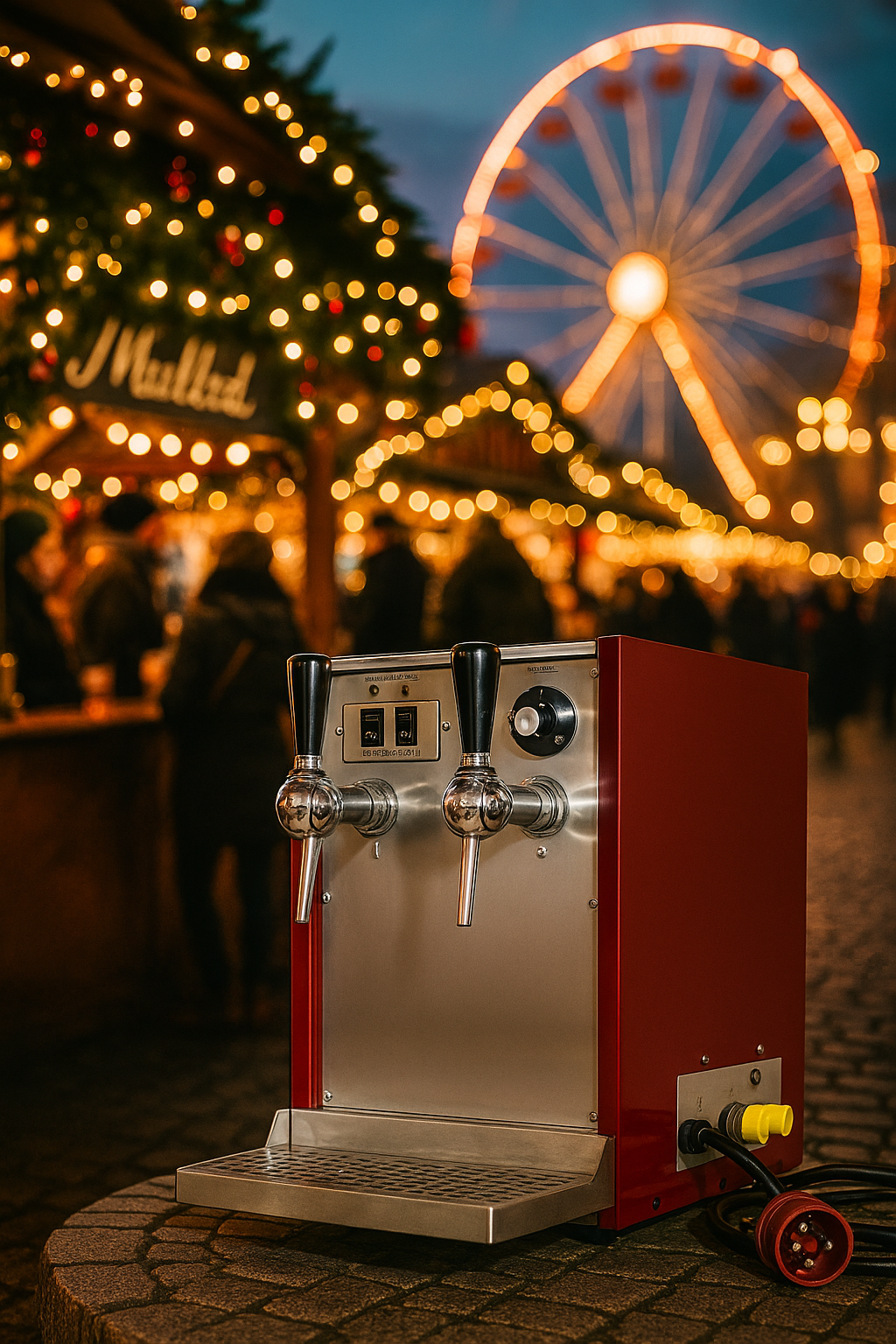

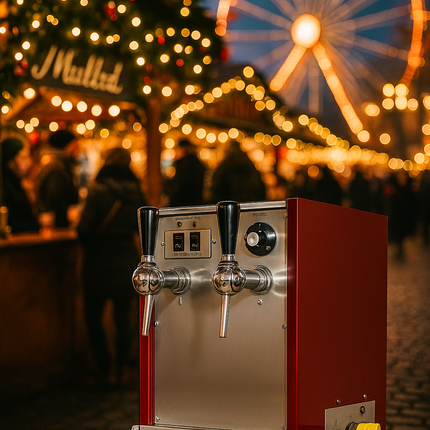

- OTHG DUO/105 EP mulled wine heater - complete package

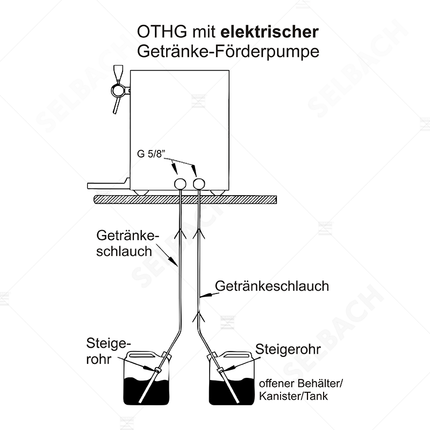

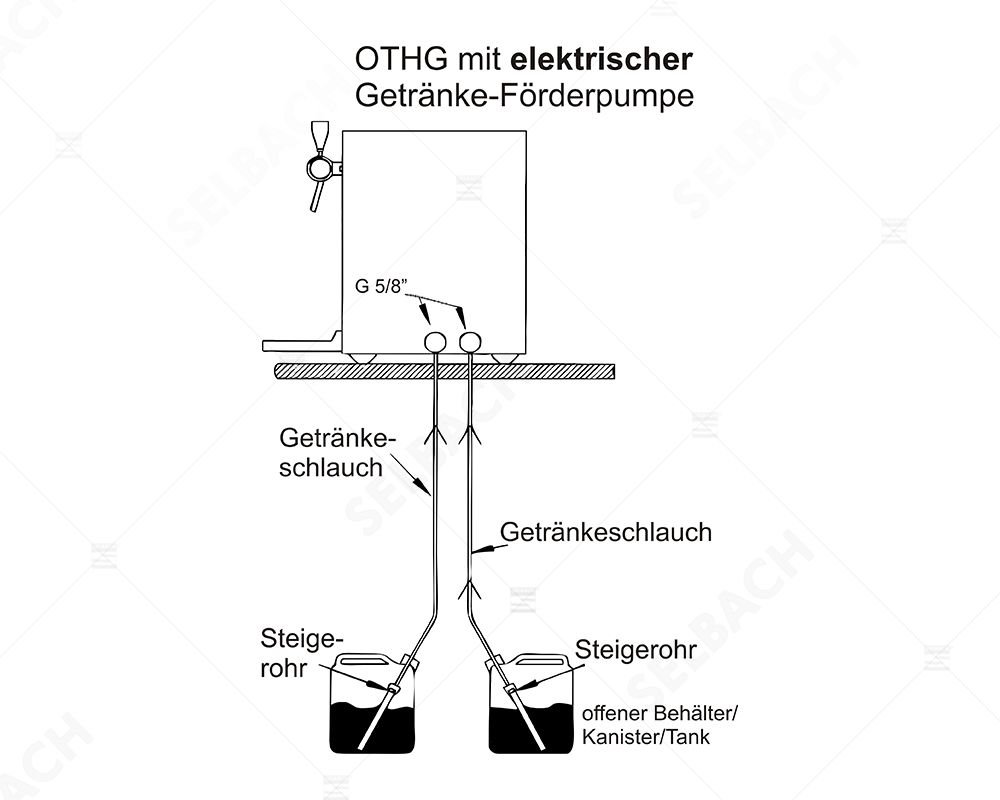

- 2 beverage hoses
- 2 riser pipes
- 1 hook wrench (for mounting/dismounting the ball valve)
- 2 sieve sleeves (for filtering/preventing solid particles from entering the device. Protects the pumps)
- 5 OTHG fit PROFI cleaning sachets (for cleaning and disinfecting hot beverage appliances according to DIN 6650-6: only this cleaning agent may be used for our OTHG appliances)
Technical data
- Temperature range for beverage dispensing: approx. 30 - 85°C
- Beverage pump: electric
- Number of beverage lines/ball valves: two
- Ready to dispense after switching on: approx. 5 minutes
- Dispensing capacity: 100 liters per hour
- Housing: Stainless steel (VA)
- Inner diameter of the beverage lines: 7 mm
- Supply voltage: 400 V/ 50 Hz
- Current: 12.5 A
- Electrical connection: CEE plug, 5-pin, 400 V, 16 A, 3PH+N
- Power: 9000 watts
- Mass: W 290 x H 463 x D 520 mm incl. drip tray
- Weight: approx. 35 kg
Special features
- Ready to tap in just 5 minutes
- Maximum output of 100 liters per hour
- Two ball valves for different drinks
- adjustable dispensing temperature
- including drip tray
- Easy cleaning in just a few minutes
Manufacturer: Friedhelm Selbach GmbH
Manufacturer part number: 08K3049-0520-000
Note regarding operation with protein-containing beverages (e.g., cocoa):
The maximum permissible processing temperature of the beverage must never be exceeded. This temperature varies depending on the manufacturer. To protect the appliance, scorching must be strictly avoided.
The "medium temperature setting" on the device should not be exceeded. We recommend using cocoa powder that can be heated to a maximum of 85°C (e.g., cocoa powder). www.naarmann.de); Connection options: see accessories
Daily cleaning with OTHG fit PROFI according to DIN 6650-6
