Description
- Material: stainless steel 1.4301
- Shelf supports made of 25 x 25 x 1.2 mm square tube, cross braces made of folded flat profile 52 x 2 mm.
- Permanently welded bolts 0.7 mm, distance 150 mm to support the shelves.
- Sealing of the shelf supports by screw feet with height adjustment at the lower and plastic plugs at the upper tube ends.
- Perforated shelves from 600 -1000 mm length with 0.8 mm, from 1200 mm length with 1.0 mm sheet thickness.
- Offset rows of holes, burr-free countersunk slots 40 x 15 mm
- All shelves are bevelled 50 mm long and 43 mm short and folded inwards without burrs.
- Diagonal bracing flat steel 25 x 2 mm / including cap nuts for fastening.
- Corner mounting possible with stainless steel corner connection clamps.
- In the case of corner installation, the shelf load of the supporting floors is reduced to 70% of the values given below.

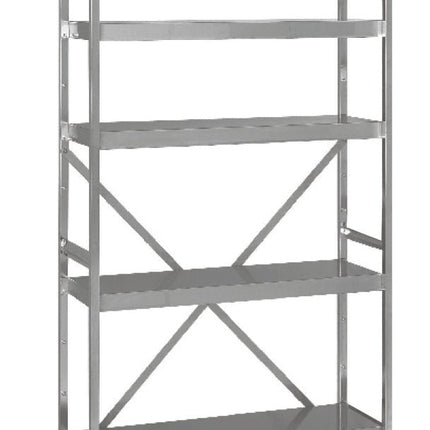

- Dimensions: W 1200 x D 400 x H 1800 mm
- Weight: 28 kg
