Description
- Material: Stainless steel 1.4301
- Shelf uprights made of 25 x 25 x 1.2 mm square tubing, cross braces made of bent flat profile 52 x 2 mm.
- Permanently welded bolts 0.7 mm, spaced 150 mm apart from the support of the shelves.
- Sealing of the shelf uprights by means of screw feet with height adjustment at the lower and plastic plugs at the upper tube ends.
- Perforated shelves 600-1000 mm in length with 0.8 mm sheet thickness, from 1200 mm in length with 1.0 mm sheet thickness.
- Staggered rows of holes, burr-free countersunk slots 40 x 15 mm
- All shelves are bent by 50 mm on the long sides and 43 mm on the end sides and rabbeted inwards without burrs.
- Diagonal bracing made of flat steel 25 x 2 mm/including cap nuts for fastening.
Corner installation possible using stainless steel corner connection clamps.
- In the case of corner construction, the load-bearing capacity of the load-bearing floors is reduced to 70% of the values specified below.

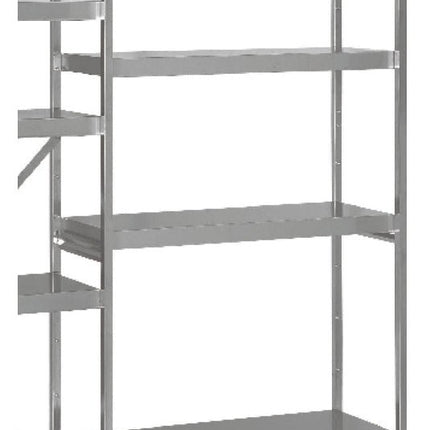

- Dimensions: W 775 x D 500 x H 1800 mm
- Weight: 17 kg
