Description
Scope of delivery:
- Rationally combination steamer Icombi Pro 10-1/1 natural gas L
- Hammock
Technical data:
- Dimensions: W 850 x depth with door handle 842 x H 1014 mm
- Weight: 149 kg
- Water inlet: R 3/4 "
- Water pressure: 150 to 600 kpa or 0.15-0.6 MPa
- Water drain: DN 50
- Performance "dry heat": 18 kW
- Performance "moist heat": 18 kW
- Connection value natural gas H: 22 kW
- Tension: 1 Nac | 230 V
technical features
- 4.3 inch TFT color display and softkeys for simple, intuitive operation. Operating modes and functions are visually highlighted
- Easy operation and exact settings with a central setting wheel with push function
- Climaplus: The active climate management in the cooking space, which permanently measures moisture, regulates and ensures effective dehumidification with high productivity, cooking quality and low energy consumption. The moisture is set in 10%steps and can be tracked for precise manual cooking via the digital display
- Dynamic air displacement in the cooking space thanks to 3 reversing high -performance fan bikes with five manually programmable fan wheel speeds.
- Powerful steam generator for optimal steam output even at low temperatures below 100 ° C
- Integrated, maintenance -free fat separation system without additional fat filter
- Cool-down function for quick cooling of the cooking space using a fan wheel
- Core temperature measurement using the core temperature sensor and optional positioning aid (accessories)
- Delta-T-Garen for particularly gentle preparation with minimal cooking losses
- Digital temperature display adjustable in ° C or ° F, display of target and actual values
- Digital display of the cooking room moisture and time, display of target and actual values
- Individual programming of up to 100 single or multi-stage cooking programs with up to 12 steps
- Individual adjustment of the cooking parameters Time, temperature and moisture of a program step during operation
- Easy transfer of cooking programs to other cooking systems via USB stick
- Integrated hand shower with automatic return and convertible spray and individual radiation function
- Energy-saving, durable LED lighting in the cooking space with high color rendering for the quick detection of the Gargutzusstal
- Free hotlines for questions about technology and application support (chiefline)
- Electronic safety temperature limiter for steam generators and hot air heating
- Integrated fan wheel brake
- Use of Active Green cleaner tabs and Care tabs (solid cleaner) for optimal occupational safety
- HACCP data storage and output via USB
- Checked for national and international standards for unattended operation
- Maximum insert height 1.60 m when using the rational horde frame car with 20 inserts, rail distance 62 mm (elimination of USPHS)
- Integrated, IP-protected USB interface for local data exchange optionally integrated, IP-protected Ethernet interface
- Optionally integrated WLAN interface (including Ethernet interface)
- Network pressure-independent automatic cleaning and care system for cooking space and steam generator
- Care system: automatic cleaning and descaling of the steam generator
- 4 different strong cleaning programs for unattended cleaning, also overnight
- Simple and intuitive operation of the cleaning programs: display of the selected cleaning program, the recommended amount of tabs and the remaining cleaning time
- Safe ending the cleaning after power failure with a cleaning -free cooking space
- Use of phosphate and phosphorus-free Active Green Cleaner-Tabs and Care tabs
- Device door with a ventilated double glass pane and swiveling inner disc for easy cleaning
- Material inside and outside stainless steel DIN 1,4301, seamless hygiene gear space with rounded corners and optimized air flow
- Easy and safe external cleaning by glass and stainless steel surfaces as well as protection against
- Ray water from all directions thanks to protection class IPX5
- Exhaust air/condensation hoods (accessories) with situational adaptation of the suction power and transfer of service reports

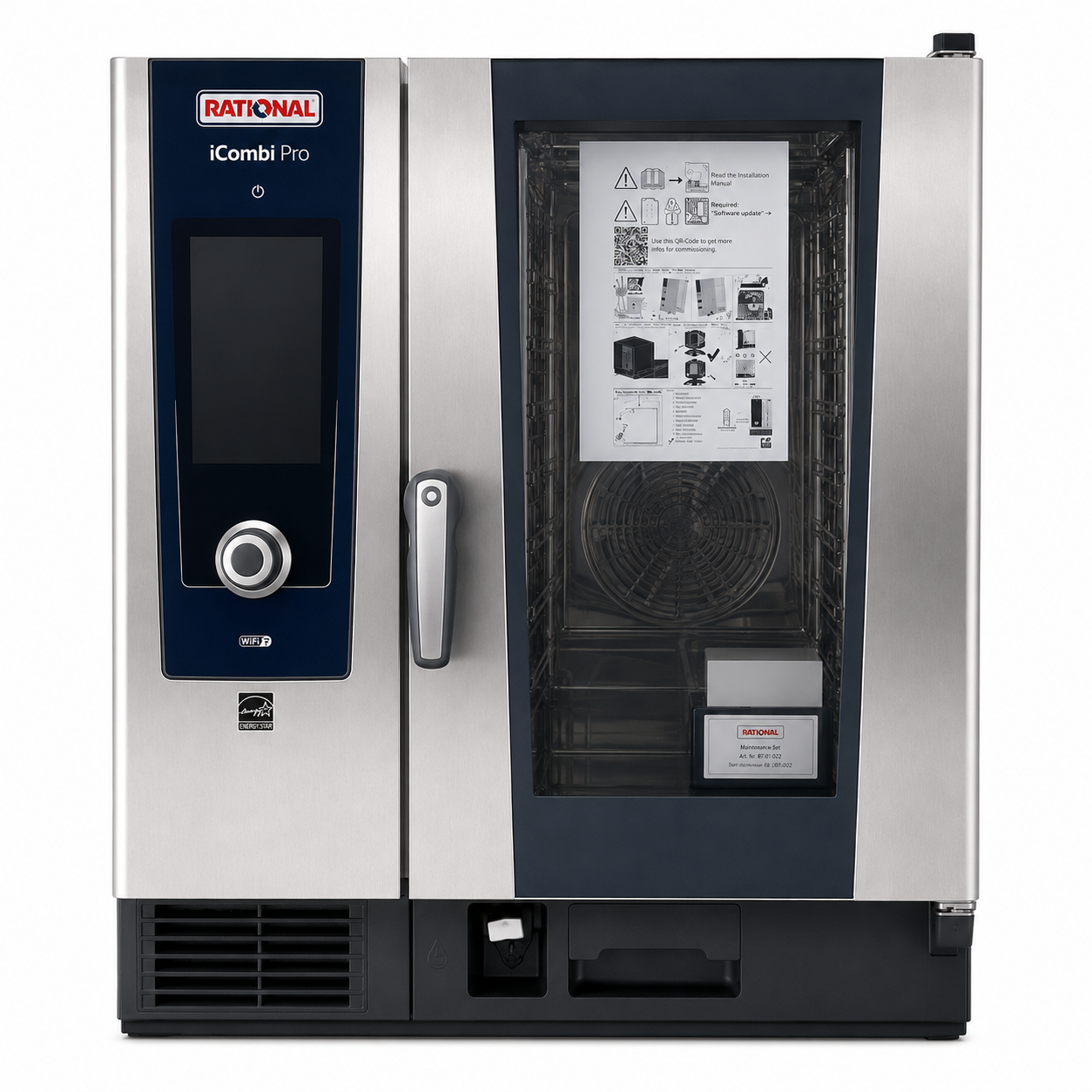

The rational combination steamer Icombi Pro 10 1/1 natural gas L is a professional device that is used in the catering and large kitchens. It offers an advanced combination of steam cookers and convection furnace functions to enable a variety of cooking techniques.
The Icombi Pro 10 1/1 offers a capacity of 10 inserts in GN 1/1 format. This means that you can insert up to 10 containers or sheets with the dimensions 530 mm x 325 mm in the device.
The device has precise and user -friendly control, which enables various programs and settings to select dishes. It offers a variety of functions such as steam cooking, hot air baking, roasting, grilling, low -temperature, regenerate and much more.
The Icombi Pro 10 1/1 is equipped with the latest technology to achieve optimal results. It has an intelligent moisture management system that automatically regulates the moisture in the cooking space and thus creates the perfect environment for every dish. In addition, the device also offers an integrated core temperature measurement to ensure that your dishes reach exactly the desired cooking point.
The combi steamer is robust and durable to meet the high requirements in commercial kitchens. It is easy to clean and wait for what makes the work processes in the kitchen more efficient.
Overall, the rational combination deactivator Icombi Pro 10 1/1 natural gas L offers a first -class cooking solution for professional kitchens that require high performance, versatility and user -friendliness.
Manufacturer: Rational
Manufacturer article number: CD1grra.0000465
Installation and commissioning may only be carried out by a certified rational technician!
We are happy to help organize assembly and commissioning through a certified rational technician. This can cause additional costs.
