Description
Scope of delivery:
- 1x ice cube maker Sotto UGP 0020AF
- 1x water inlet and drain set
- 1x ice scoop
- Leveling feet
Technical data:
- Type: Sotto UGP 0020AF
- Cone size: 20 g
- Capacity: 25 kg/d*
- Storage capacity: 5.5 kg
- Cooling: Air (A)
- Refrigerant: R290
- Weight: 45 kg
- Connection: 230 V | 50 Hz
- Ambient temperature: 10 to 43°C
- Dimensions: 450x475x650 mm

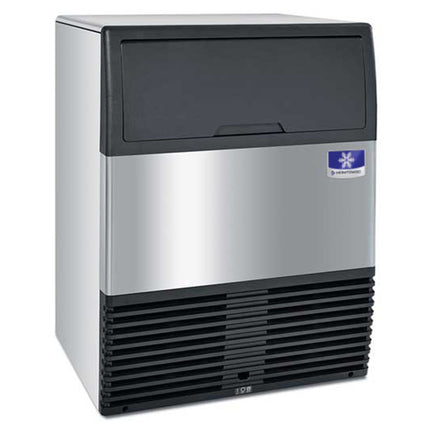

The completely newly developed ice makers of the SOTTO series from Manitowoc produce high-quality, crystal-clear, octagonal gourmet ice cream cones particularly economically and exceptionally quietly.
The possible applications are diverse, e.g. in bars, snack bakeries, snack butcher shops, ships, hotels, etc.
The automatic control of the SOTTO series guarantees excellent ice quality even at high ambient temperatures**.
The octagonal ice cream cones of the SOTTO series are the perfect solution for discerning customers. These elegant and unique ice cream cones are particularly solid and crystal-clear. The octagonal gourmet ice cream cones are manufactured using a patented process. Water is sprayed into the ice cream cone molds and, after solidification, is released by hot gas. The ice cream cones fall into the storage container via the horizontal spray plate.
Since no minimum clearances above or to the sides need to be maintained, these devices are ideal for built-in or under-mounted installation.
The side-removable air filter protects against lint, dust, and grease deposits. It also facilitates maintenance and cleaning of the condenser.
Thanks to the completely redesigned cooling system, daily ice production has increased significantly compared to previous models.
Manufacturer: Manitowoc
Manufacturer article number: CN-UGP 0020AF
* Based on 21° C air / 10° C water temperature
**To improve ice quality and extend its lifespan, we recommend using a water filtration system. Failure to use a water filtration system may result in damage after a certain period of use, which could void the appliance's warranty.
