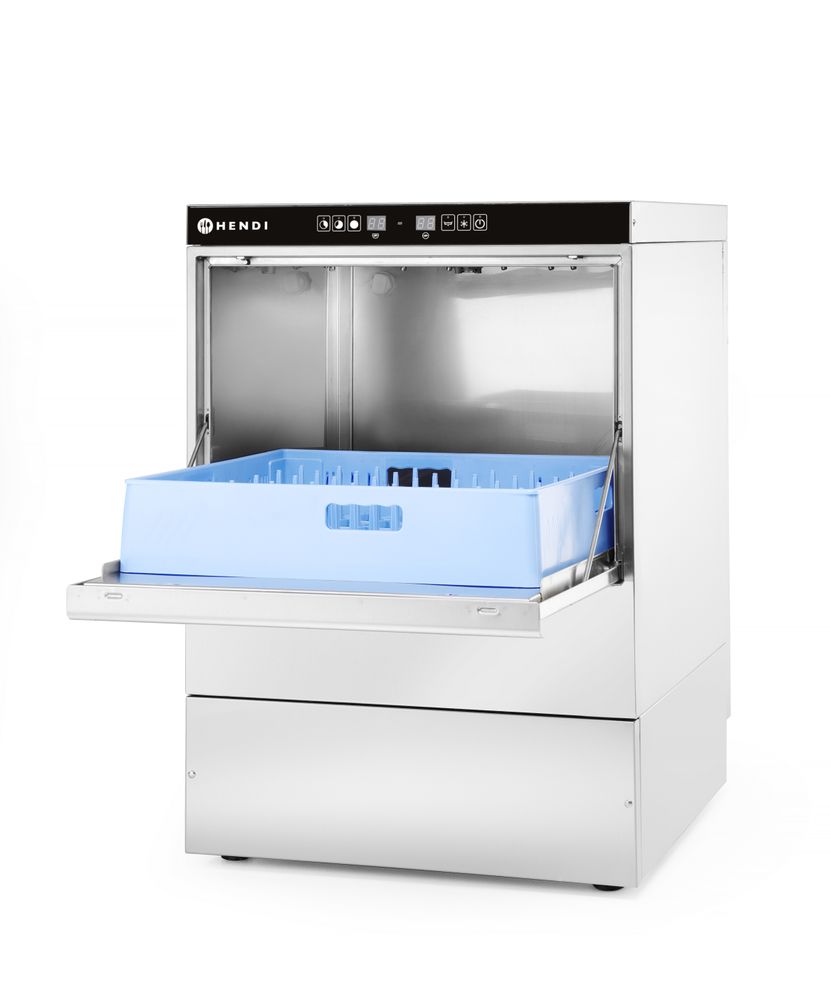

Description
Extremely easy to use, clean and maintain.
Ideal for cleaning plates, cutlery, glasses, cups and trays.
Electronic controls.
Detergent and rinse aid dispenser as well as pump included as standard.
Housing made of stainless steel AISI 304.
Rotating plastic washing and stainless steel rinsing arms on the lower chamber floor.
Fixed plastic wash arms and rotating stainless steel rinse arms in the upper chamber ceiling.

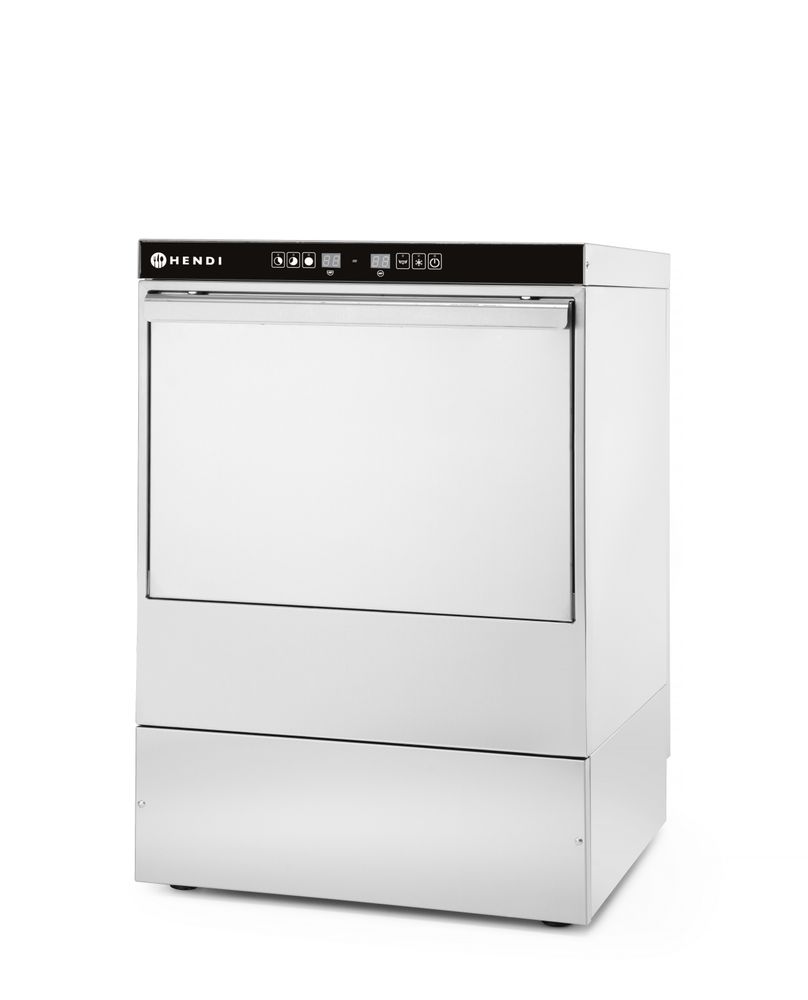

Robust double-walled door with microswitch stops the program automatically when opened.
Maximum height of the glasses: 325 mm.
Maximum plate height: 335 mm.
Washing water temperature: 60°C.
Water temperature when rinsing: 85°C.
Boiler (capacity/power): 6L/6kW.
Tank (capacity/power): 35L/2.8kW.
Washing pump: 0.75 kW.
Safety thermostat for boiler/tank: up to 105°C/99°C.
Electronic water thermometer for boilers and containers.
Pump tightness factor: IP 44,
Feet ø40 mm, height adjustable ±10 mm.
Weight: 55 kg.
FUNCTIONS:
Three wash programs: 60, 120, and 180 seconds. (The wash program is automatically extended by the time needed to heat the rinse water to +85°C.)
Cleaning program for dishwasher chamber.
Cold rinse function – ideal for washing glasses.
The Thermo-Protector function prevents cold water flushing and guarantees that flushing only begins at a temperature of 85°C.
The soft-start function starts the water pump at low pressure and gradually increases the pressure to protect delicate items from damage.
8-point self-diagnosis program.
Eco program for lower power consumption.
BENEFITS OF COLD RINSE:
Cools the glasses after cleaning and makes them ready for use.
Removes the smell of rinse aid and is therefore ideal for wine glasses.
EQUIPMENT:

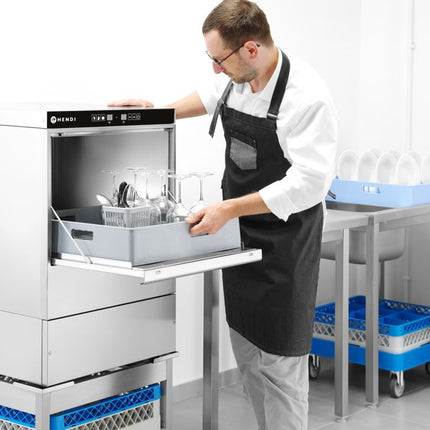

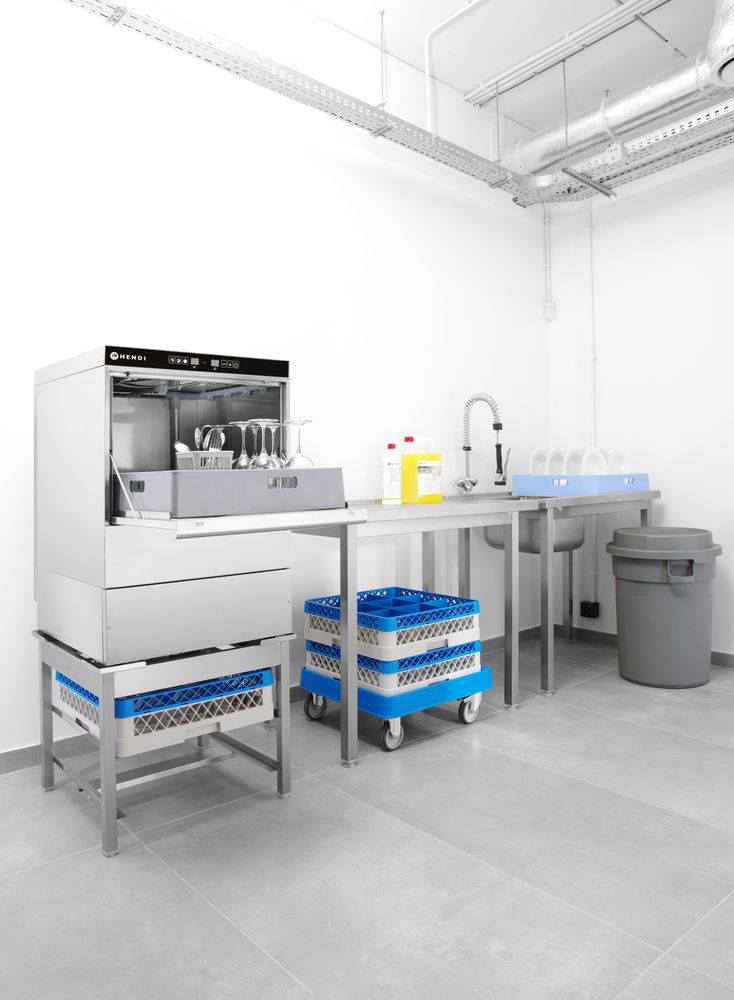

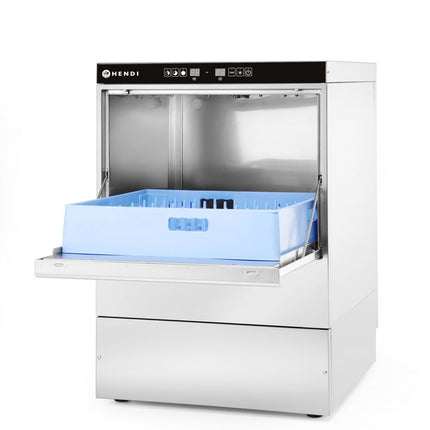

1x universal basket 500x500x(H)105 mm for glasses.

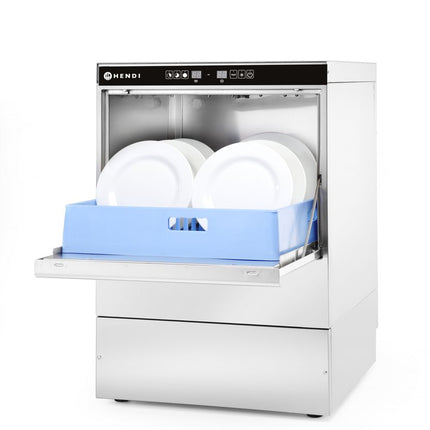

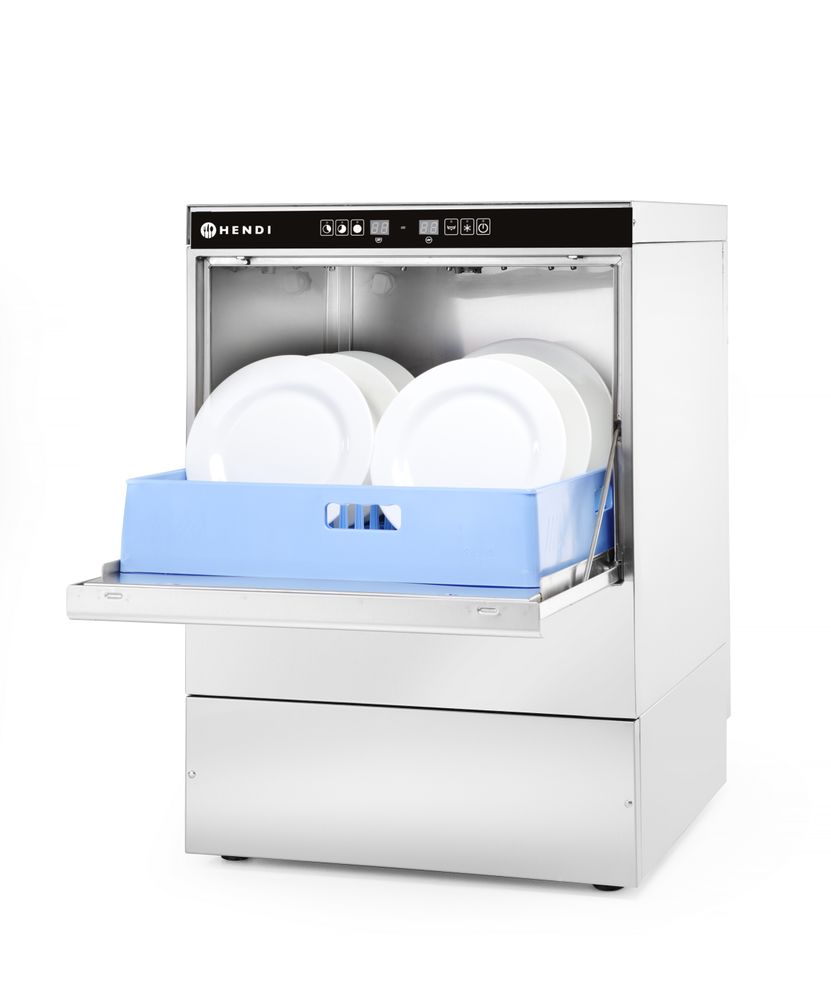

1x basket with dividers for deep or flat plates (5x8 pieces), 500x500x(H)105 mm.
1x cutlery basket 110x110x(H)130 mm.
Electric detergent and rinse aid dispenser.
Length of the water inlet hose: 1.5 m, with connection for 3/4” internal thread.
Drain pump and hose.
Power cable without plug.
