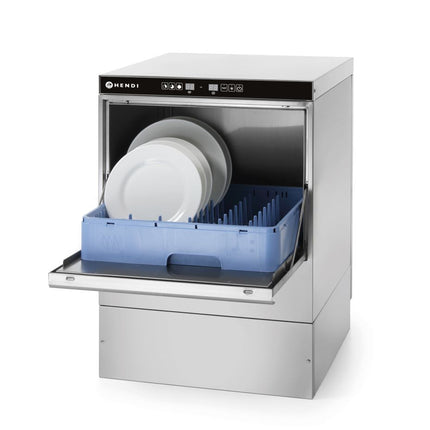

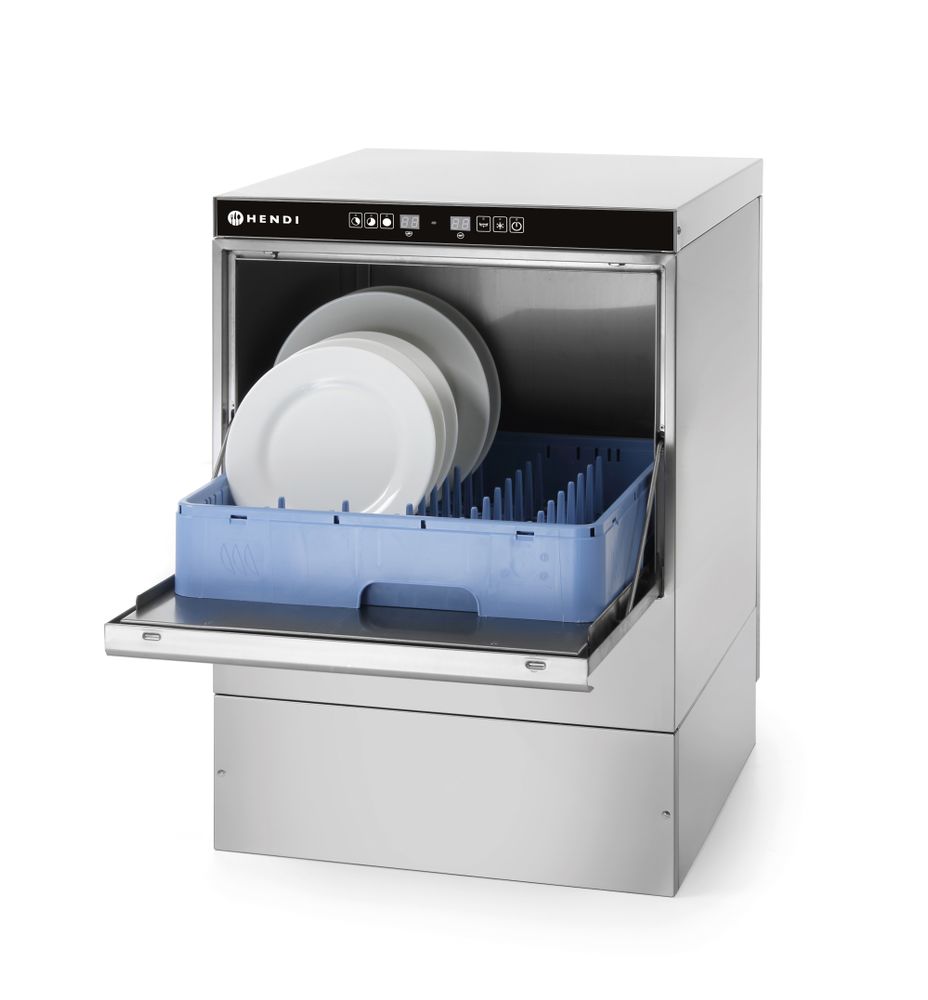

Description
Easy to use, clean and maintain.
Ideal for cleaning plates, cutlery, glasses, cups and trays.
Electronic control.
Detergent and rinse aid dispensers as well as pump are included as standard in the scope of delivery.
Housing made of AISI 304 stainless steel.

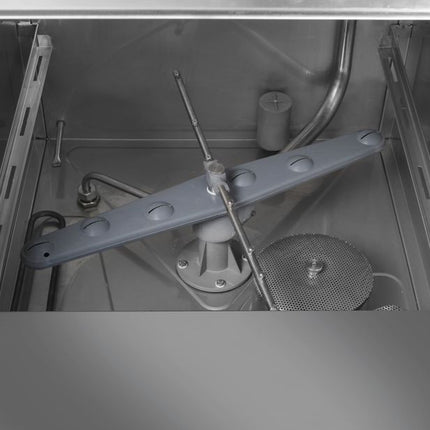

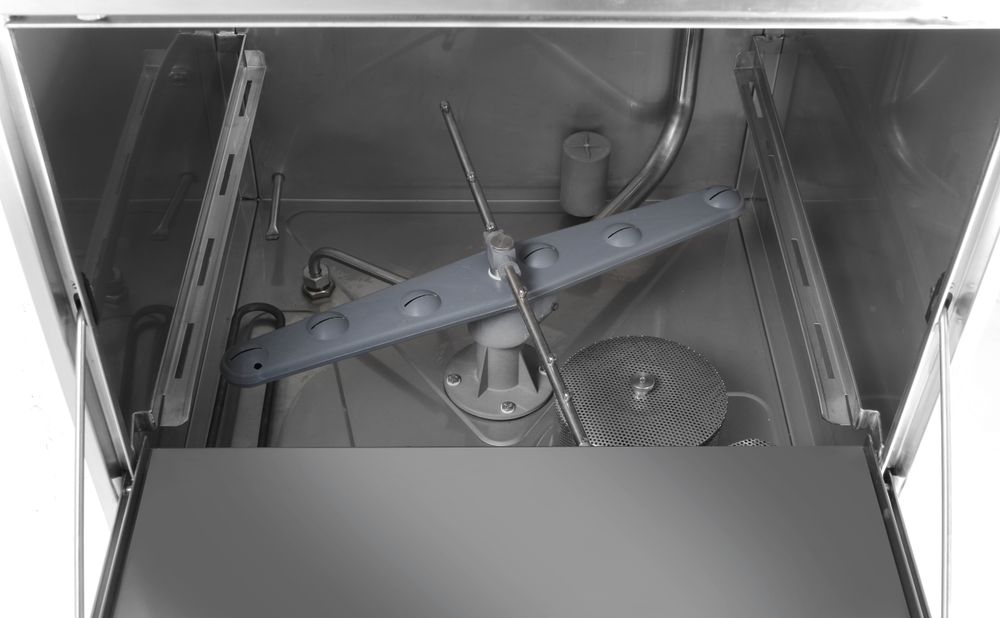

Rotating plastic washing arms and stainless steel rinsing arms at the bottom of the chamber.
Fixed plastic washing arms and rotating stainless steel rinsing arms in the upper part of the chamber.
Robust, double-walled door with a microswitch that stops the program when opened.
Maximum height of the glasses: 325 mm.
Maximum plate height: 335 mm.
Water temperature during washing: 60°C.
Water temperature during rinsing: 85°C.
Boiler (capacity/power): 6 l/6 kW
Chamber (capacity/power): 35 l/2.8 kW.
Wash pump: 0.75 km.
Safety thermostat for boiler/chamber: up to 105°C/99°C.
Electronic water thermometer for boilers and chambers.
Protection class: IP 44.
Feet ø40 mm, height adjustable by ±10 mm.
Weight: 55 kg.
FEATURES:
Three wash programs: 60, 120, 180 seconds (the rinse program is automatically extended by the time required to heat the rinse water to +85°C).
Dishwasher chamber cleaning program.
Cold rinse function - ideal for washing glasses.
Thermo-Protector function to prevent cold water flushing - guarantees that the flushing process only starts at a temperature of 85°C.
The soft-start function starts the water pump at a low pressure and gradually increases the pressure to protect sensitive items.
8-point self-diagnosis system.
Eco function - for reduced power consumption.
BENEFITS OF COLD FLUSHING:
Cool the glasses after cleaning and make them ready for immediate use again.
Removes the smell of rinse aid, ideal for wine glasses.
EQUIPMENT:

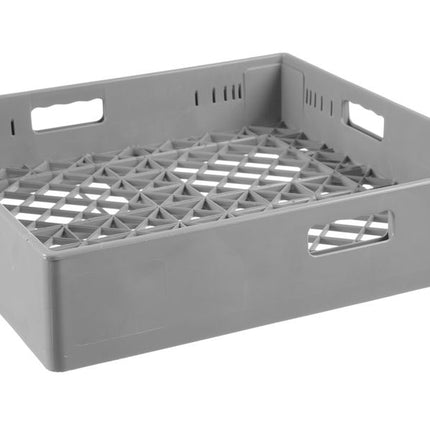

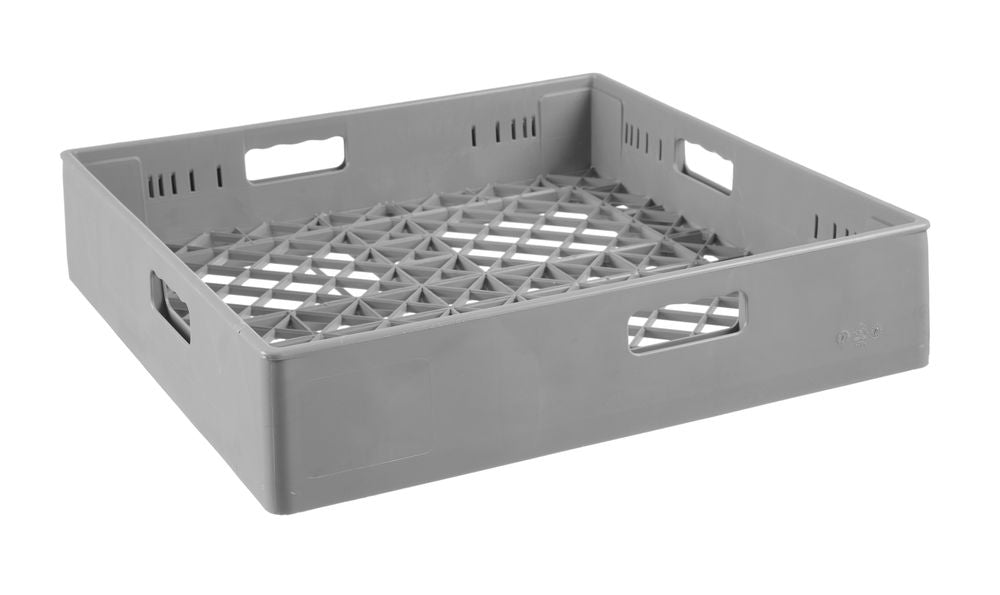

1 Universal dishwasher basket 500x500x(H)105 mm.

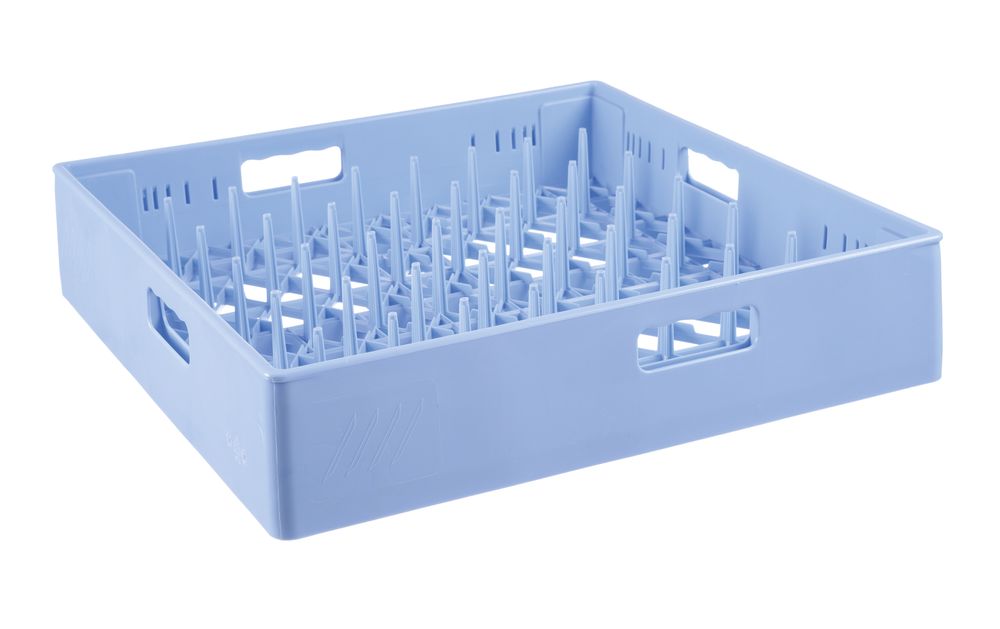

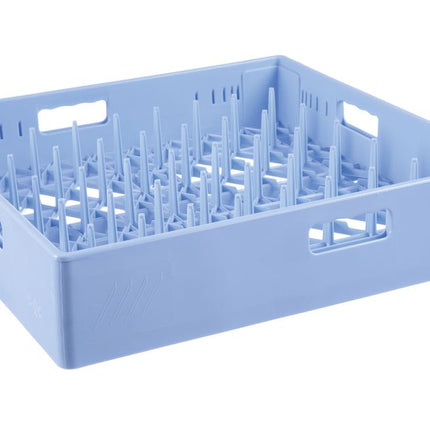

1 basket with spacers for deep and shallow plates, 500x500x(H)105 mm.

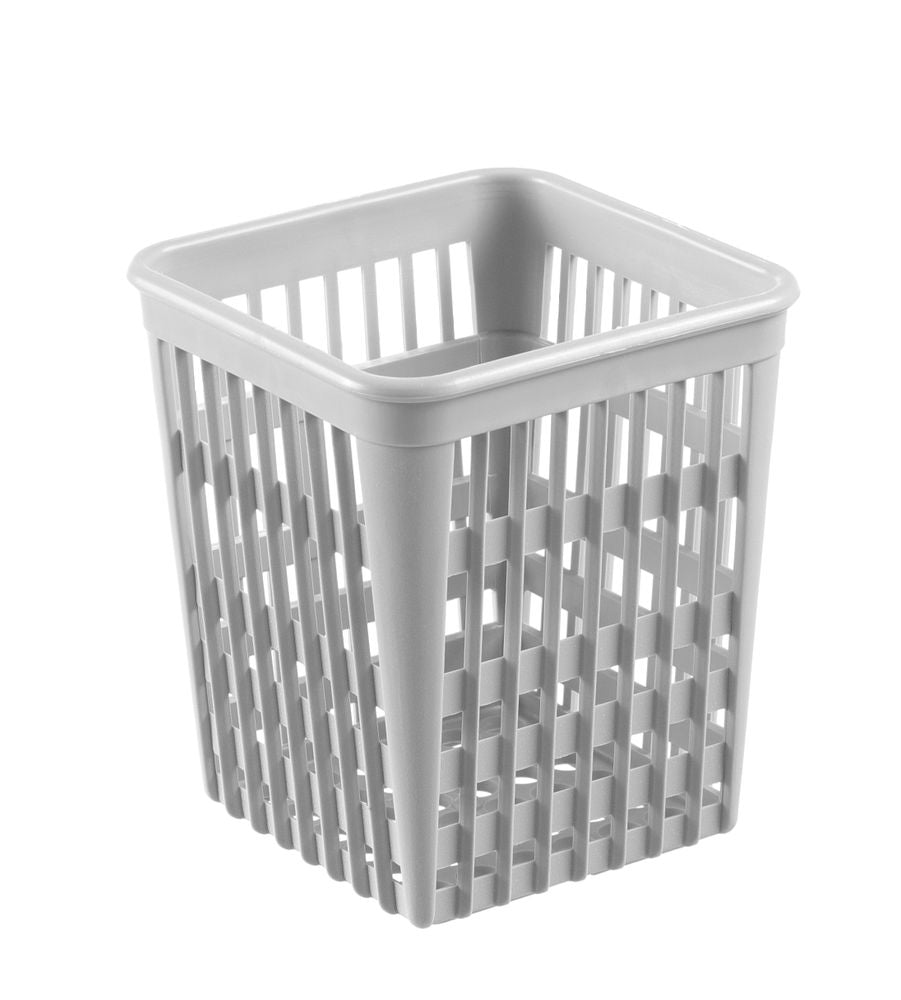

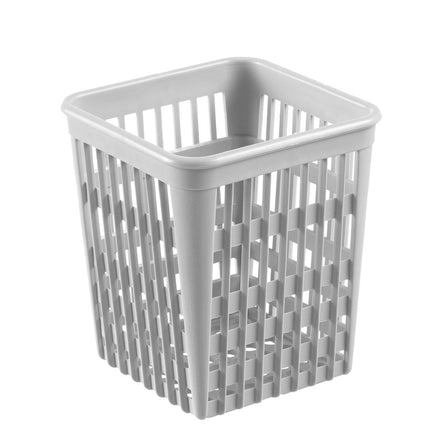

1 dishwasher basket for cutlery 110x110x(H)130 mm.
Electric detergent and rinse aid dispenser.
Water hose 1.5 m long, with 3/4" Internal thread connection.
Drainage pump and draining hose.
Power cable without plug.
