Description
Efficient pre-rinsing, clean sorting: compact feed table with basin on the right, robust & hygienic – perfect for through-feed operation!
Scope of delivery

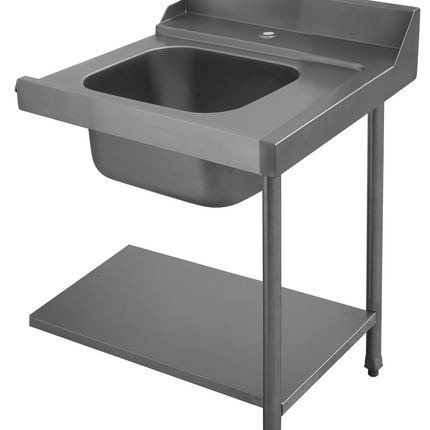

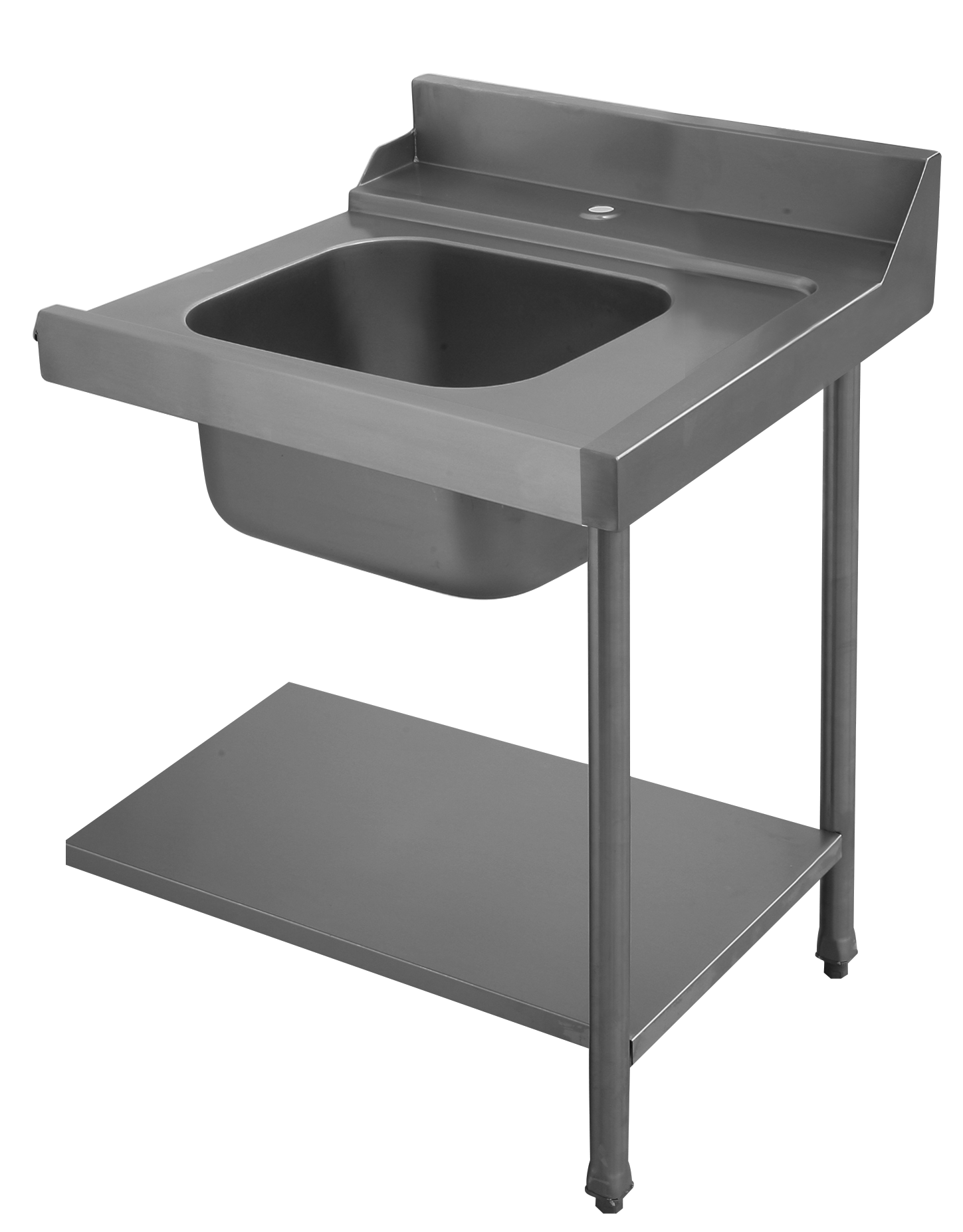

- 1× Colged infeed table PAL70SX (can be mounted on the right), W×D×H 700×715×850 mm
- 1× deep-drawn basin right, 500×400×250 mm (W×D×H)
- 1 x insert shelf (height approx. 170.5 mm, side height 30 mm), connectable with machine brackets
- 1× 3-sided basket guide profile (30 mm; table end edge 50 mm)
- 1× rear splash guard/upstand, height approx. 110.9 mm
- 2x height-adjustable feet (adjustment range approx. 20 mm)
Technical data
- External dimensions (W×D×H): approx. 700 × 715 × 850 mm
- Mounting side: left (PAL70DX), also front-mounted on UltraTech, TopTech Plus && IsyTech 48 attachable
- Basin dimensions: 500 × 400 × 250 mm (deep-drawn)
- Tabletop material: Stainless steel CrNi 18/10 (CNS), approx. 1.0 mm thick
- Substructure/frame: 40 × 40 mm square tube, bolted together – high torsional rigidity
- Shelf insert: Height approx. 170.5 mm, side height 30 mm; additionally supported by machine brackets
- Basket guide: integrated, 3-sided 30 mm; end edge 50 mm
- Splash guard: upturned on the back, height approx. 110.9 mm
- Feet: 2 pieces on the outside, height adjustable ±20 mm; rigidly attached to the machine side
- Setup: for pass-through dishwasher inlet (pre-sorting/setting up)
Special features
- Compact 70cm design – Maximum function in a small footprint
- Stable 40×40-mm frame with bolted construction for tough, continuous use
- 3-sided basket guide for quick, safe insertion of 500×500-mm dishwashing baskets
- Deep-drawn basin – seamless, hygienic, ideal for pre-rinsing and emptying
- Rear raised edge protects the wall and reduces splashing water
- Prepared for hand shower thanks to the 33 mm tap bore
- shelf creates additional storage space and stabilizes the table via the machine angle
- CNC 1.0 mm with smooth surfaces – easy to clean, corrosion-resistant
All information is provided without guarantee.
Manufacturer: Colged
Manufacturer part number: 80206L700
